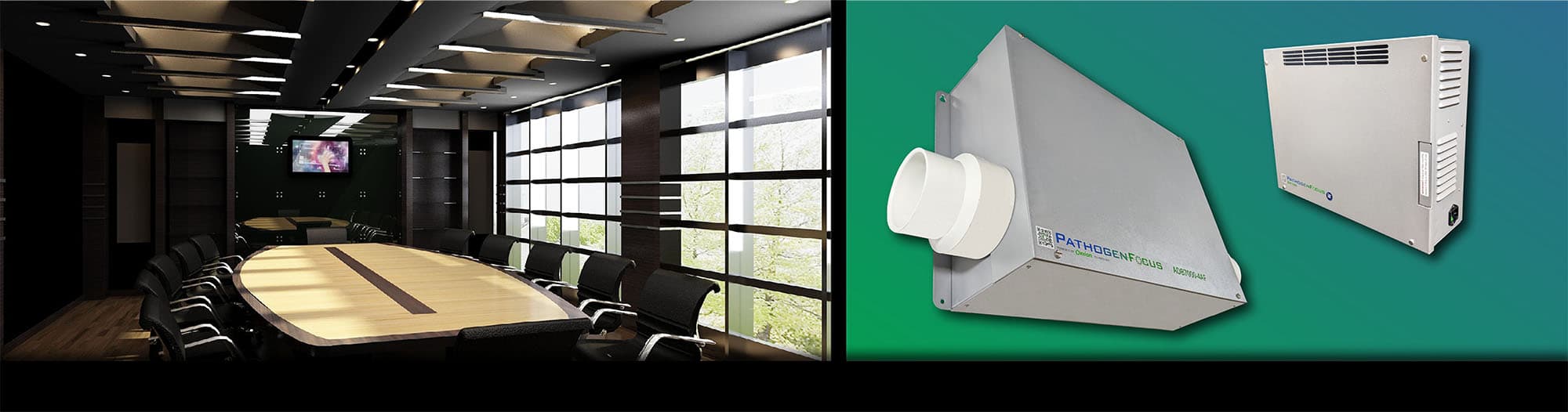

The ADB 7000 series
PathogenFocus offers a full family of Air Disinfection Biosecurity units. Every model shares the same proprietary modulated dielectric barrier discharge cold-plasma core. The difference is how each unit moves air into and out of the treatment space.
Six ways to deploy ADB
From an in-duct unit integrated with your HVAC to a mobile tower for wide-open floors, there is a configuration for every space when sized and engineered for the facility.
Jump to a product
ADB 7000-AF
In-Duct / HVAC Integrated
Integrates with your existing HVAC system to distribute continuous cold-plasma treatment through facility airflow. Each unit is process-engineered for the space with pre-programmed factory settings.
- Models
- 1AF, 2AF, 4AF, 8AF
- Power
- 15 to 55 W
- Voltage
- 120V
- Reaction chamber
- 3" or 4" PVC
Best for: Buildings with central HVAC that need hands-off, always-on coverage.
Works with
ADB 7000-T
Turbine (Standalone)
An integrated turbine draws air into the unit and distributes treatment independently of HVAC. Additional fans, piping, or ductwork may be required to distribute treatment evenly in the space.
- Models
- Four sizes
- Power
- 33 to 175 W
- Voltage
- 120V / 230V
- Filter
- MERV 11, replace at least every 90 days
Best for: Spaces that need standalone treatment without central air handling.
Works with
ADB 7000-W
Wall-Mounted
A lightweight wall unit that runs independently of HVAC for continuous treatment, with an included mounting bracket.
- Power
- 12 to 13 W
- Voltage
- 120V / 230V
- Turbine
- 112.9 CFM
- Mounting
- Bracket included
Best for: Rooms that need fixed, unobtrusive treatment without HVAC integration.
Works with
ADB 7000-WP
Wall-Mount / Portable
Mounts on a wall or moves where needed. Ships with a mounting plate and carrying handle, with fixed or selectable output.
- Power
- 12 to 13 W
- Voltage
- 120V / 230V
- Turbine
- 112.9 CFM
- Filter
- IP55-rated
Best for: Facilities that may relocate treatment over time.
Works with
ADB 7000-P
Portable
Plug-and-play standalone treatment that runs independently of HVAC with pre-programmed factory settings for targeted spaces.
- Power
- 20 to 22 W
- Voltage
- 120V / 230V
- Weight
- 5.5 to 7.0 lbs
- Outlet, cord
- 3" PVC, 6 ft cord
Best for: Targeted, mobile treatment for public and shared spaces.
ADB 7000-MT
Mobile Tower
A high-output mobile unit on casters with four high-velocity fans distributing treatment at roughly 450 CFM, with six duty-cycle options.
- Airflow
- ~450 CFM
- Power
- 170 W, 120V/230V
- Fans
- 4 high-velocity
- Filters
- 4 x MERV 11
- Duty cycles
- 40% to 100% (6 settings)
- Size, weight
- 20.5x20.5x77", 130 lbs
Best for: Warehouses, gyms, and open floors that need maximum reach.
The ADB 7000-8MT is intended for rapid treatment in unoccupied enclosed spaces. The area must remain unoccupied until treatment has dissipated or been exhausted according to the approved procedure.
Easy to run, easy to monitor
Smart controller
Units installed with an HVAC system include a smart controller for simple, set-and-forget operation.
HVAC-installed units
Wireless Control System
PathogenFocus states that the Wireless Control System provides centralized monitoring and control for compatible ADB systems per the approved specification sheet.
AF · T · W · WP
Weather Guard Enclosure
Optional outdoor protection for in-duct units installed in exposed or rooftop locations.
AF series

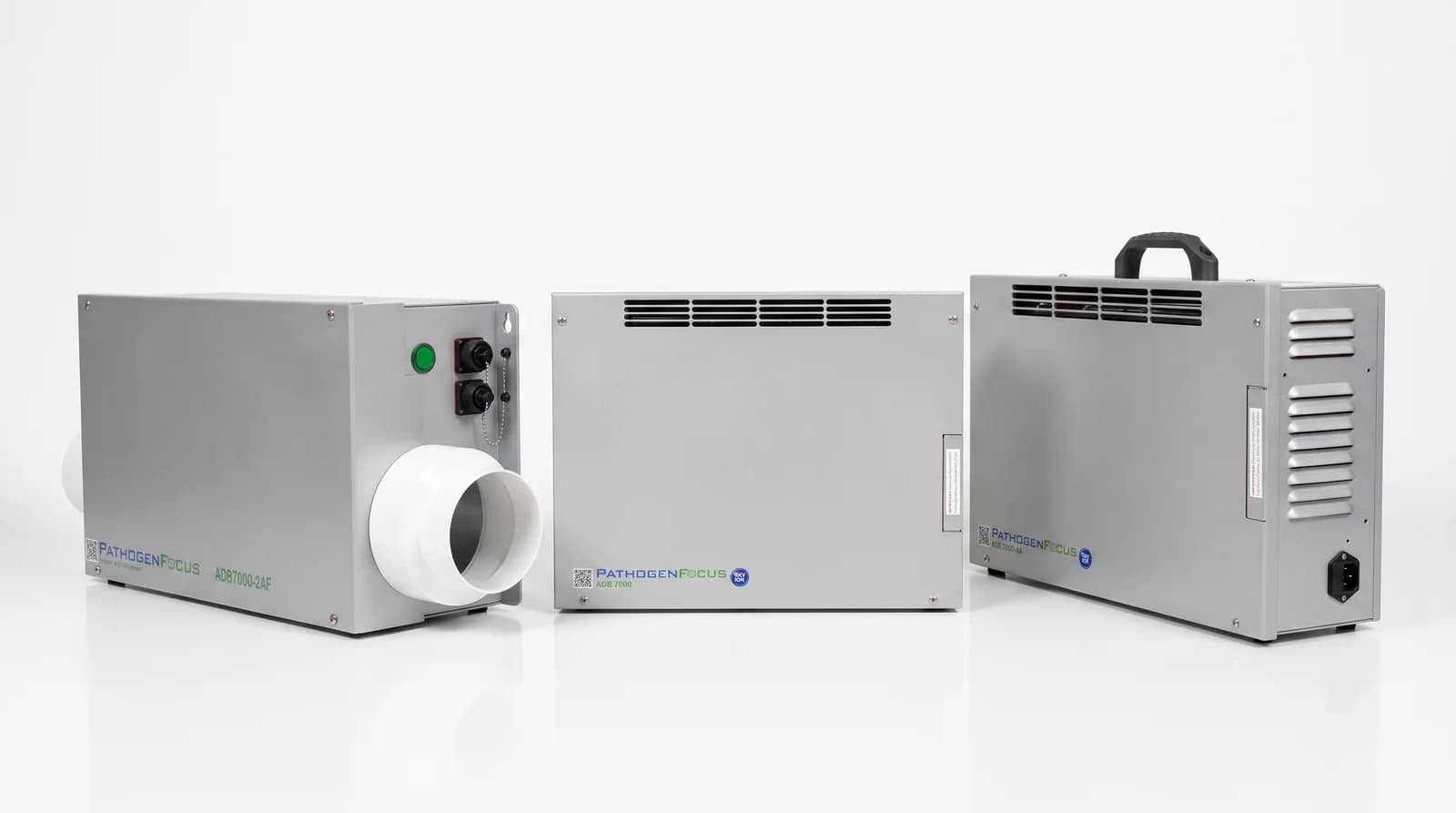

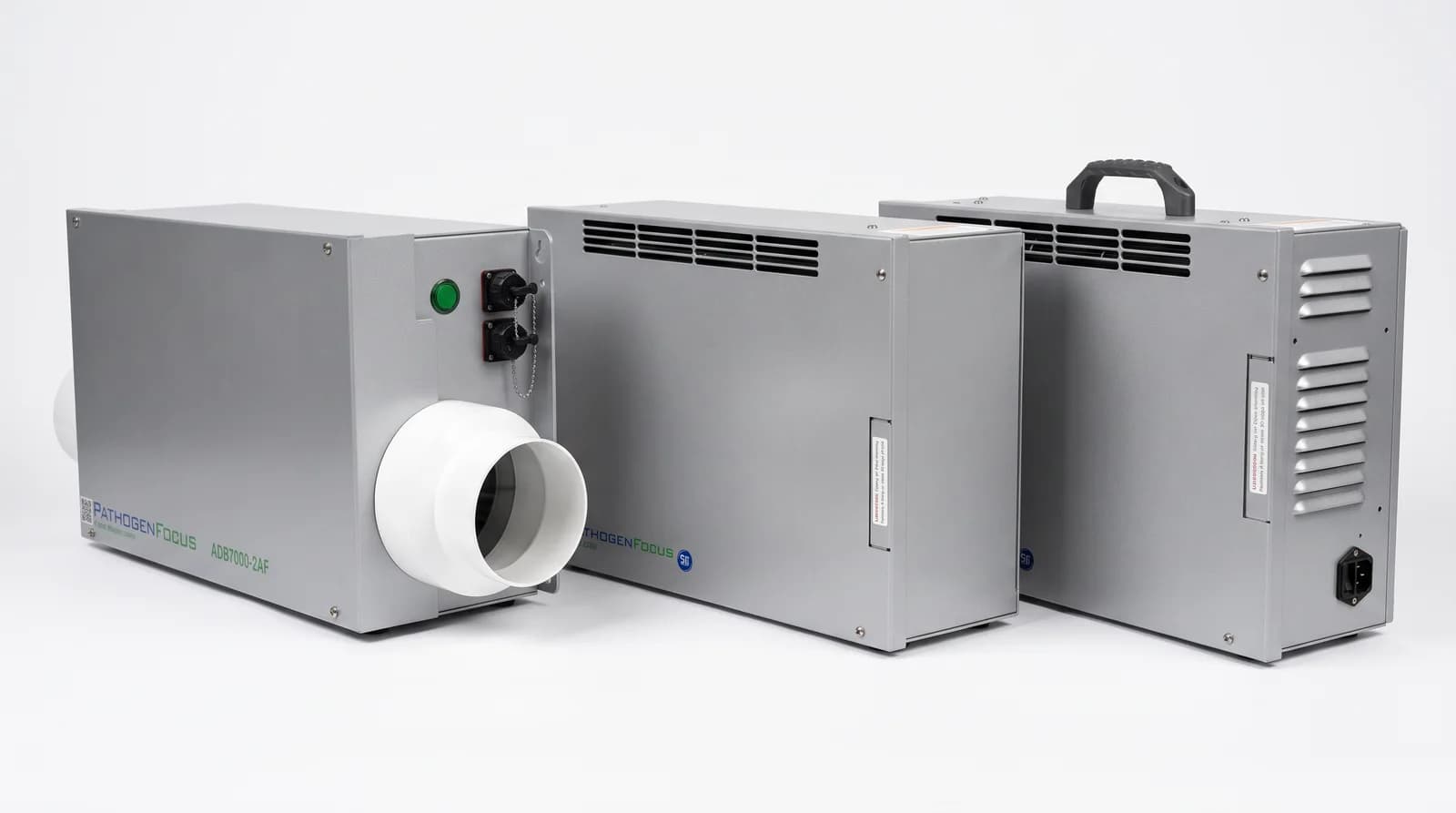

Built, branded, and ready to deploy
Powder-coated aluminum cabinets engineered for real-world facilities, from a single in-duct unit to a full fleet.
We will spec the right configuration for your space
Tell us the cubic volume, facility use, HVAC airflow, occupancy, and contamination-control objective. We will identify the appropriate ADB configuration and provide available technical documentation.
